Product Name:Liquid Pumps
Product Code:Liquid Pumps
Availability:Yes

Product description:

SC Hydraulic Engineering Corp. manufactures a vast array of air operated hydraulic pumps and boosters. We have supplied hydraulic pumps and boosters to many industries and OEM's, and we continue to find new and interesting uses for our pumps.

Liquid Pumps

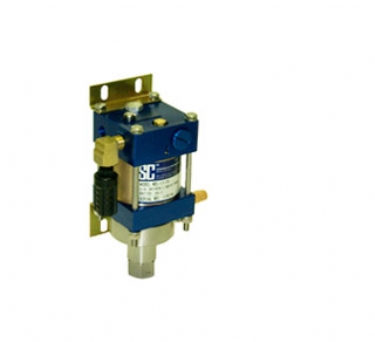

L3 and L3C Series Liquid Pumps
  • Compact air operated liquid pumps. Wetted sections available in 316L Stainless Steel (L3) and Carbon Steel (L3C). Seven ratios available in each material, capable of pressure exceeding 18,000 psig.

10-4 Series Liquid Pumps
  • Smallest of the SC "Standard" type pumps with a 4" diameter air cylinder and 1 1/4" stroke. Nine ratios available with the highest ratio capable of hydraulic pressures up to 22,000 psig. Commonly used where fluid flow is not critical. Typical applications include proof and burst testing, clamping, pressing, jacks and any end use requiring very high pressure at low flows.

10-5 Series Liquid Pumps
D-5 Series Non Lubricated Liquid Pumps

  • The original and most common SC "standard" series pump with a 5 1/4" diameter air cylinder and 1 1/4" stroke. 16 ratios available with the highest ratio capable of hydraulic pressures up to 55,000 psig. Commonly used for bolt tensioning, filter presses, clamping, proof and burst testing, metal forming. The 10-5 series with it's many ratios and modification options can be utilized anywhere a source of hydraulic pressure is required. The D-5 series has all the same characteristic including a Non Lubricated feature.

10-6 Series Liquid Pumps
D-6 Series Non Lubricated Liquid Pumps

  • The largest of the SC "standard" series pumps with a 7" diameter air cylinder and a 2 1/2" stroke. 13 ratios available with the highest ratio capable of hydraulic pressures up to 73,000 psig. Commonly used where very high pressures are required at low flows. Applications include proof and burst testing to extreme high pressures, torque wrench actuation, bolt tensioning, aircraft jacks, filter presses, clamping, holding, metal forming. 10-6 is used extensively by offshore oil companies in many applications due to the pumps inherent ruggedness and reliability. The D-6 has the same characteristics including a Non Lubricated feature.

L6 Series Double Acting Liquid Pumps

  • The newest pump manufactured by SC has a 6" diameter air cylinder with stainless steel , chrome plated wetted parts. This double acting pump is available in 3 ratios, the highest of which is capable of hydraulic pressures up to 11,000 psig.

L10 Series Double Acting Liquid Pumps

  • The largest liquid pump currently manufactured by SC with a 10" diameter air cylinder, this double acting pump is available in 4 ratios, the highest of which is capable of hydraulic pressures up to 20,000 psig.
